SC-32 Scientific RPN Maker Kit
The dedicated tactile handheld Reverse Polish Notation scientific instrument engineered for STEM students and technical professionals. Features Raspberry Pi RP2350 silicon, 43 mechanical snap-dome keys (400g actuation), a transflective sunlight-readable ST7567A monochrome LCD with native Terminus typography, and a 4-part tool-free sliding dovetail chassis.
Engineered for Mathematical Focus
Over the last twenty years, calculation was swallowed by the screen: phone notifications, fragile touch displays, and hidden syntax errors. StackCalc SC-32 returns calculation to a dedicated, tactile instrument.
Elimination of Parentheses Traps
Standard in-fix calculators force students to parse complicated operator precedence and balance parentheses sets before calculating. In RPN, operators evaluate the instant they are keyed, showing calculations from the inside-out.
Full Intermediate State Visibility
The 4-level operational stack (X, Y, Z, and T) displays every intermediate value on the transflective ST7567A monochrome screen. Students spot conceptual calculation errors immediately, rather than discovering a faulty answer at the end.
Authoritative 400g Keystrokes
Glass touchscreens provide zero mechanical feedback, leading to missed keystrokes during time-crunched exams. The SC-32 provides 400 grams of snap-dome force with debossed finger-centering dishes on every keycap.
The Video Showcase: Mechanical Animation, Unboxing & Engineering Lesson
Experience the complete engineering journey from sliding dovetail CAD kinematics and laser-engraved card unboxing to 4-register RPN stack operations on a work desk.

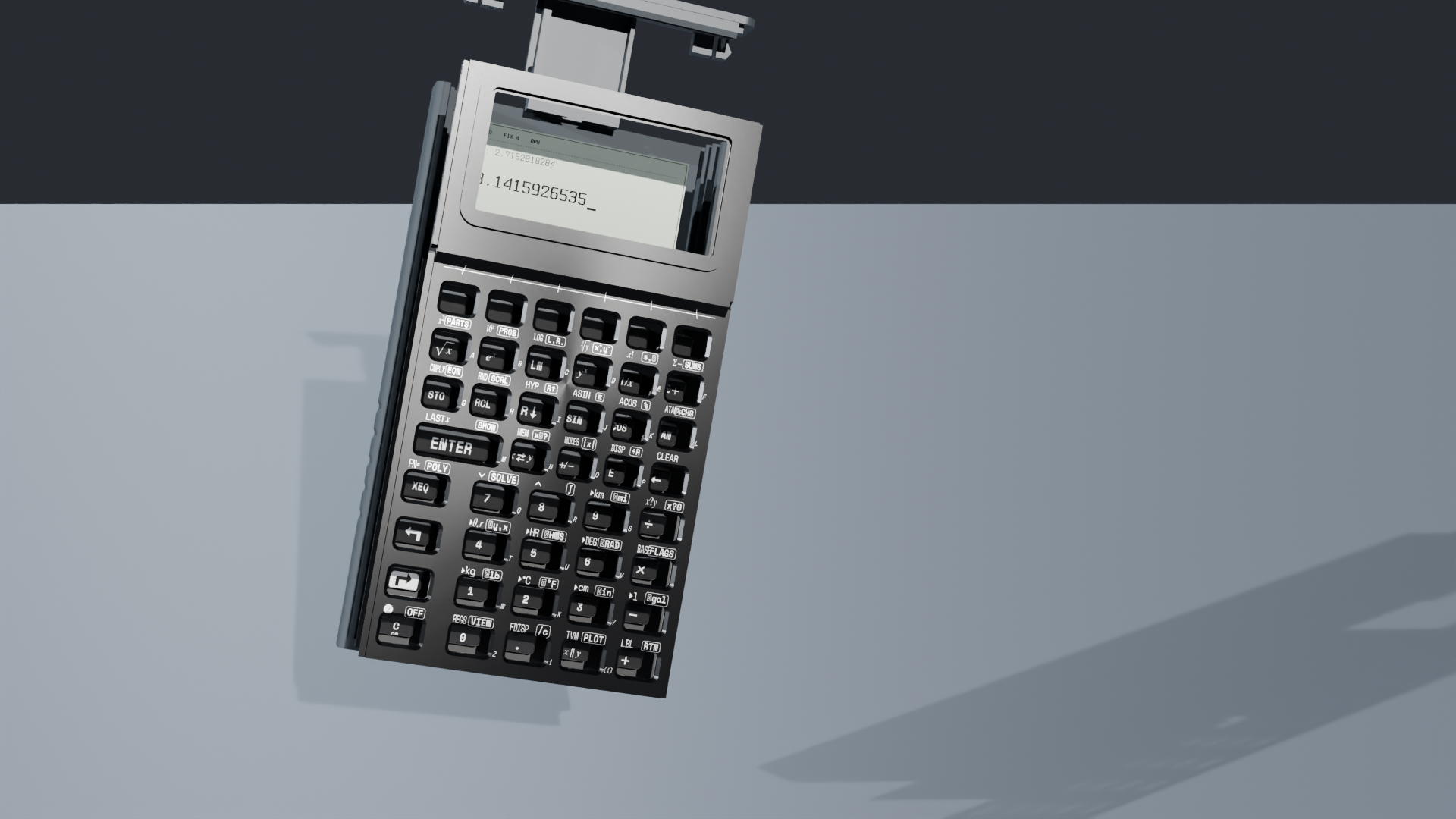

Mechanical & CAD Animation
Exploded 3D view showing sliding dovetail chassis, Shore 95A tactile keypad membrane, and captive top cap retention.

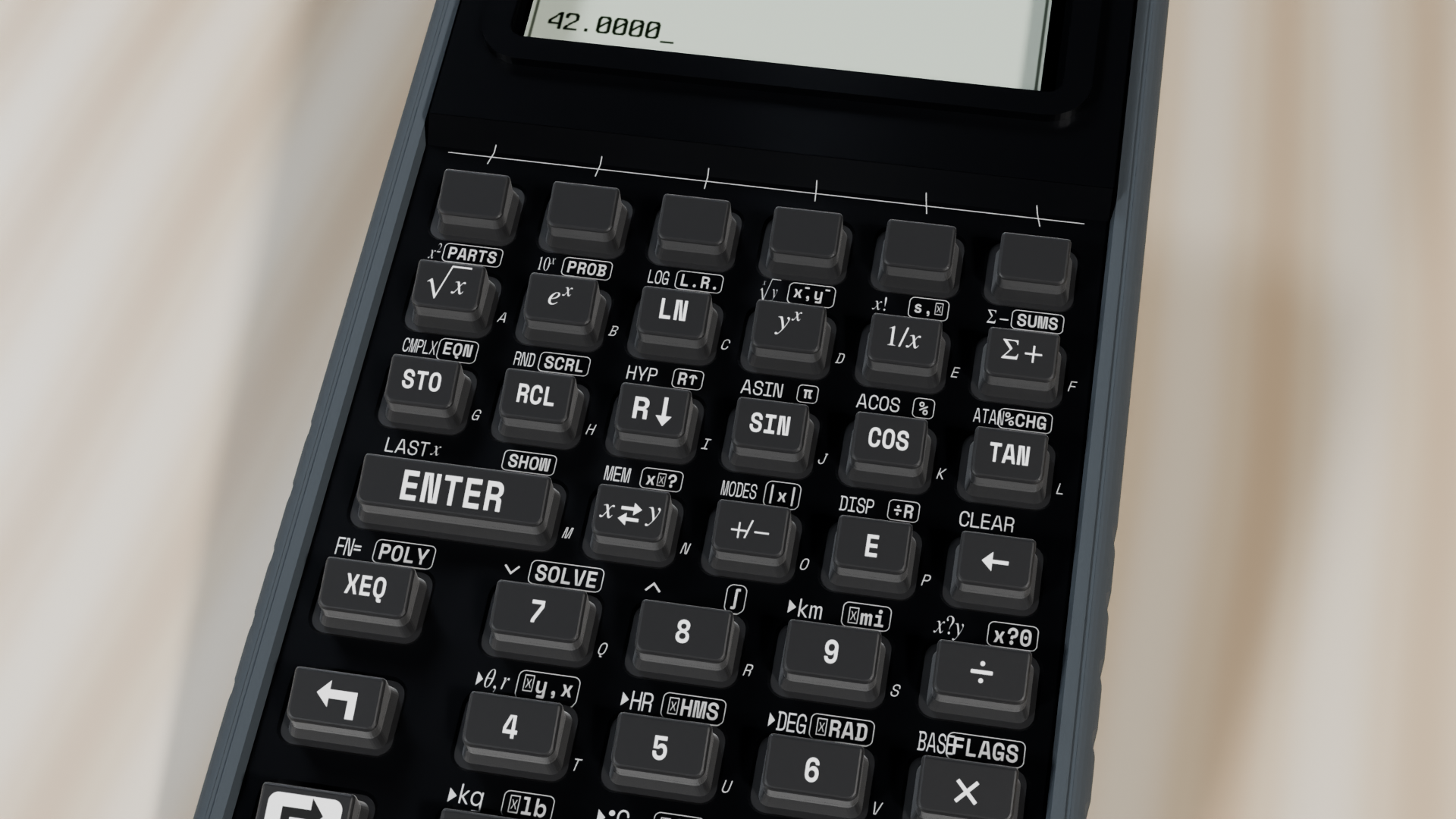

4-Line Stack Dynamics & Zero Parentheses
Inside-out evaluation of (12 + 8) × (15 - 5) on the 4-line live XYZT stack. Zero parentheses keys needed, and intermediate values remain visible.
Radical Pyramids & Continued Fractions
Step-by-step nested radical evaluation saving 350+ keystrokes per exam and shaving 4 minutes off tournament sprint tests.

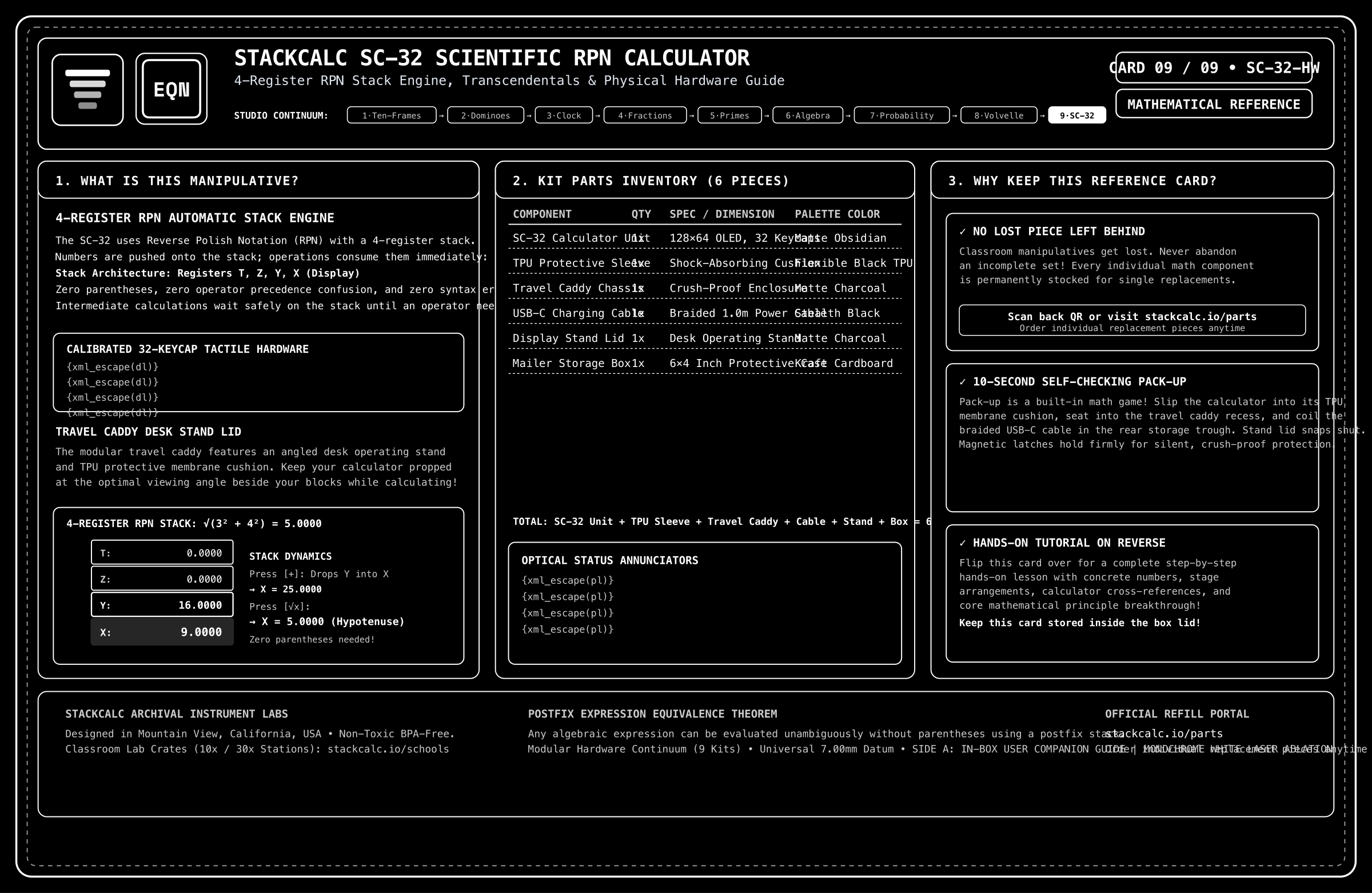

Laser-Engraved Archival Reference Card (135×90mm)
Included inside every SC-32 box. Scan Side B to access the full assembly and firmware video suite or inspect Side A for circuit and chassis replacement IDs.
From the Teacher's Manual: Unit Lab Sheet
Most traditional math teacher manuals treat calculators as black-box answer boxes. In the StackCalc curriculum, the SC-32 RPN architecture is an active pedagogical instrument that makes order of operations, stack registers, and intermediate states visible at every keystroke.
Lab 00: Four-Register Stack Dynamics & Parenthesis Inversion
Investigation Goal: Trace the physical flow of data through the 4-register operational stack (\(X, Y, Z, T\)). Prove mathematically how Reverse Polish Notation evaluates complex rational expressions without parentheses, eliminating algebraic precedence traps.
Arrange 4 tactile manipulative tokens on the desk labeled \(X\) (Active Entry), \(Y\) (Operator Partner), \(Z\) (Buffer), and \(T\) (Top Register). Model the mechanical "Stack Lift" and "Stack Drop":
Evaluate the multi-operator rational expression: \(\displaystyle \frac{(14 + 6) \times (38 - 13)}{25}\). Record each register state after every tactile keystroke:
| Tactile Keystroke | Register X (Display) | Register Y | Register Z | Operational Meaning |
|---|---|---|---|---|
| 14 [ENTER] | 14.0000 | 14.0000 | 0.0000 | Push first term into stack |
| 6 [+] | 20.0000 | 0.0000 | 0.0000 | Sum first bracket: \((14 + 6 = 20)\) |
| 38 [ENTER] | 38.0000 | 20.0000 | 0.0000 | Push second factor; preserves 20 in Y |
| 13 [-] | 25.0000 | 20.0000 | 0.0000 | Evaluate second bracket: \((38 - 13 = 25)\) |
| [*] | 500.0000 | 0.0000 | 0.0000 | Multiply numerator factors: \((20 \times 25 = 500)\) |
| 25 [/] | 20.0000 | 0.0000 | 0.0000 | Divide by denominator: \((500 / 25 = 20)\) |
Replicate the expression on your physical SC-32 calculator. Verify the snap-dome acoustic response and LCD stack status:
Equip Your Classroom With Tactile STEM Manipulatives
The SC-32 was designed from the ground up to pair with our physical manipulative collection, taking students seamlessly from spatial touch to rapid scientific computation.
Fraction Studio
Tactile proportional fraction towers (84mm Whole) with snap-fit segments. Bridges arithmetic fractions directly into stack computation.
36-Page Spiral Student Workbook
Features 20 dedicated laboratory investigations with step-by-step CRA worksheets, tactile token diagrams, teacher diagnostic notes, and full solutions key.
Tactile Algebra Boxes
Physical polynomial trays with dual-color positive/negative tiles for concrete factoring, FOIL visual models, and quadratic completeness.

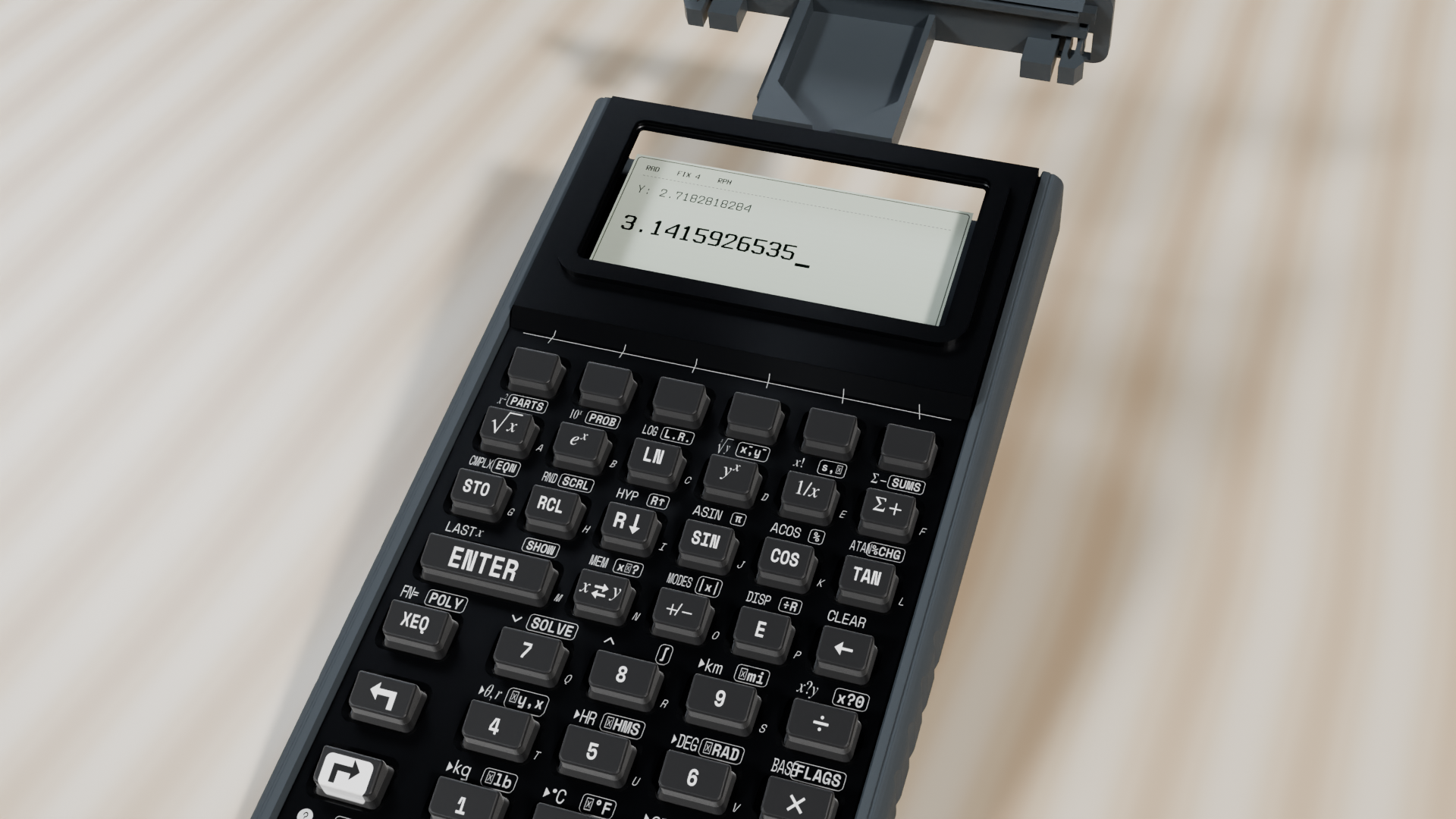

Tool-Free Sliding Dovetail Architecture
Zero screws, zero adhesives, zero fragile snap clips. Every component slides into place with mechanical precision.
Precision 4-Part Interlocking Stack
The SC-32 disassembles in seconds along continuous internal dovetail tracks for tool-free battery replacement and modular faceplate customization:
- 1. Base Enclosure: Ergonomic 1.6° planar wedge with anti-wobble desk pads.
- 2. Motherboard Core: Raspberry Pi RP2350 with surface-mount ST7567A reflective graphic LCD.
- 3. Tactile Membrane: Shore 95A flexible TPU sheet with 43 gold-plated snap-domes.
- 4. Faceplate & Snap Cap: Satin matte faceplate with LCD shroud and retaining top cap.
FORCE (g)
400g ──┐ <-- Tactile Snap Peak (Intentional Actuation)
│ \
│ \
120g ──┼───┴────────┐ <-- Bottom-Out Snap (720 Hz Click)
│ \
0g ──┴──────────────┴───────────► TRAVEL (mm)
0.0mm 0.15mm 0.25mm
Engineering Rationale: Standard rubber membrane calculators mush at 60g, creating ambiguity and double-entry errors. The SC-32's 400-gram metal dome requires decisive finger commitment, enabling blind, error-free entry at 140 keystrokes/minute.

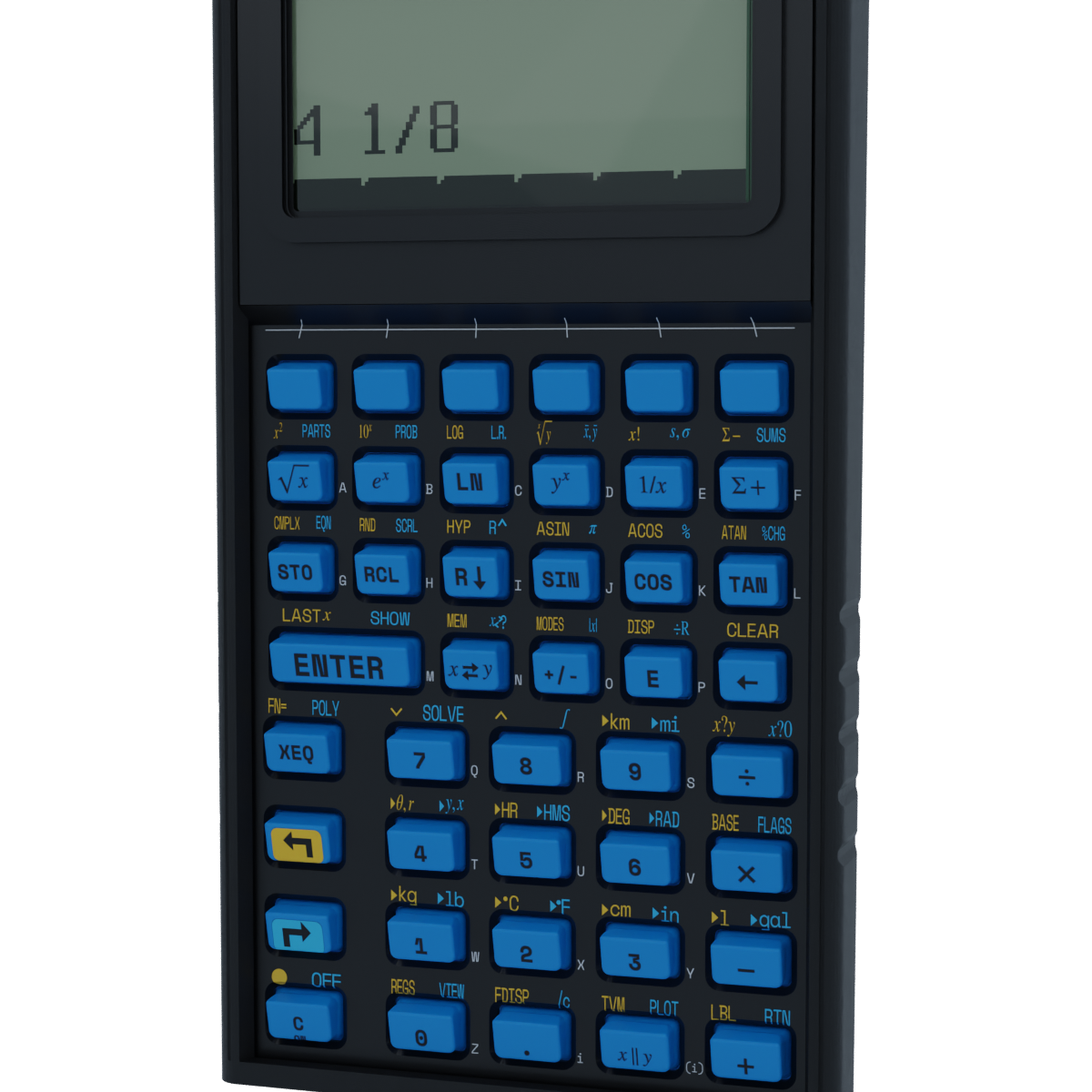

Stealth Industrial
Concentric Archimedean spiral grooved Black PLA 2.0+ faceplate, impact-resistant Black PETG unibody chassis, electric Azure TPU 95A keycaps, and dual-layer laser-etched Silver Chrome & Gold foil markings.
Retrofuturism
Monolithic Ivory/Polar White PLA 2.0+ faceplate and chassis, pure Polar White Shore 95A TPU keycaps, and high-contrast Deep Navy & Antique Bronze foil hot-stamped legends.

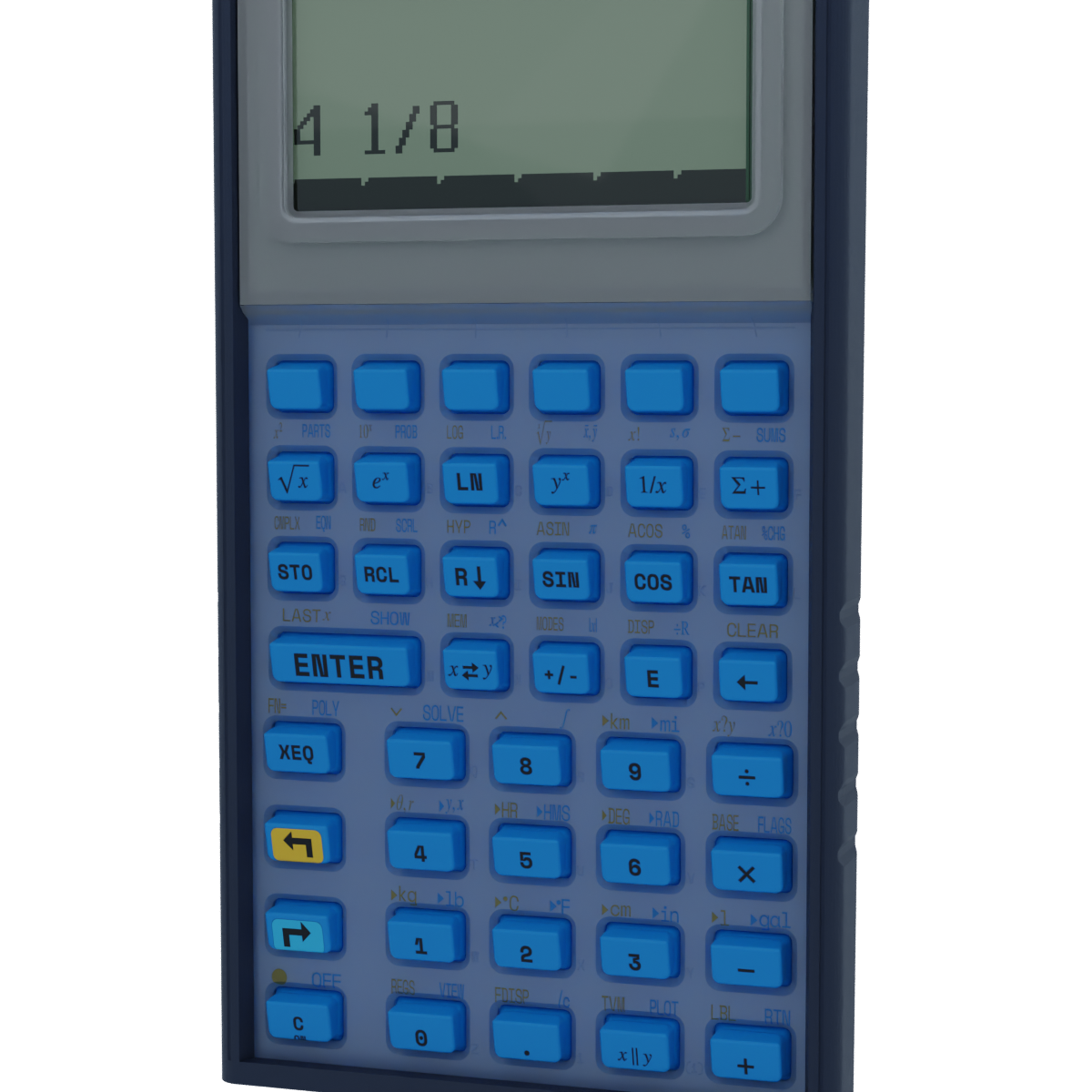

Voyager
Optical Frosted Clear PETG faceplate revealing the internal matte black motherboard traces and immersion gold test pads, Matte Midnight Navy PLA chassis, Azure TPU keys, and Sky Blue foil.

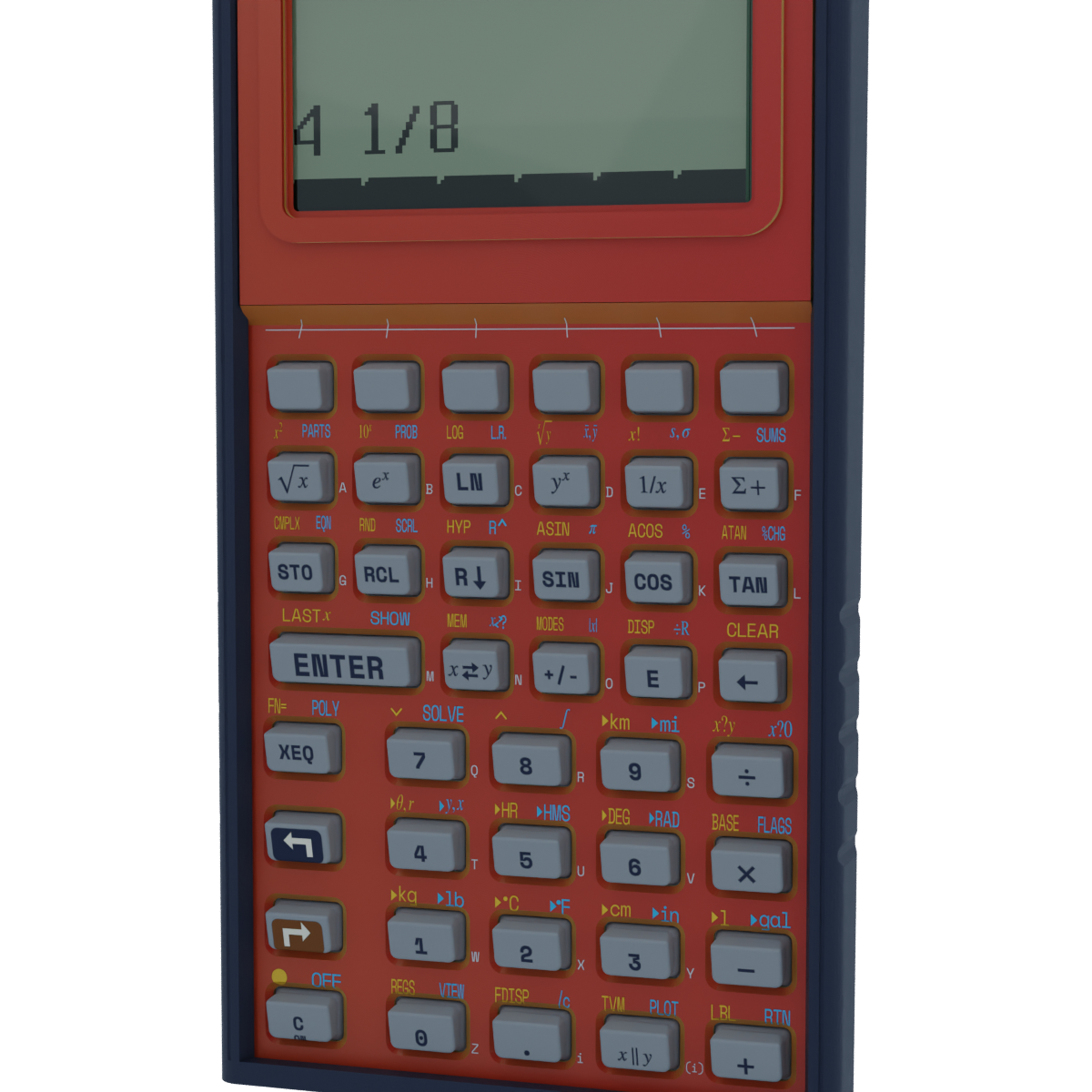

Supernova
Dual-Color Silk PLA faceplate transitioning from Crimson Red to Warm Amber Gold with anisotropic light sheen, Midnight Navy PLA chassis, Light Gray TPU keys, and mirrored Silver & Gold foil.

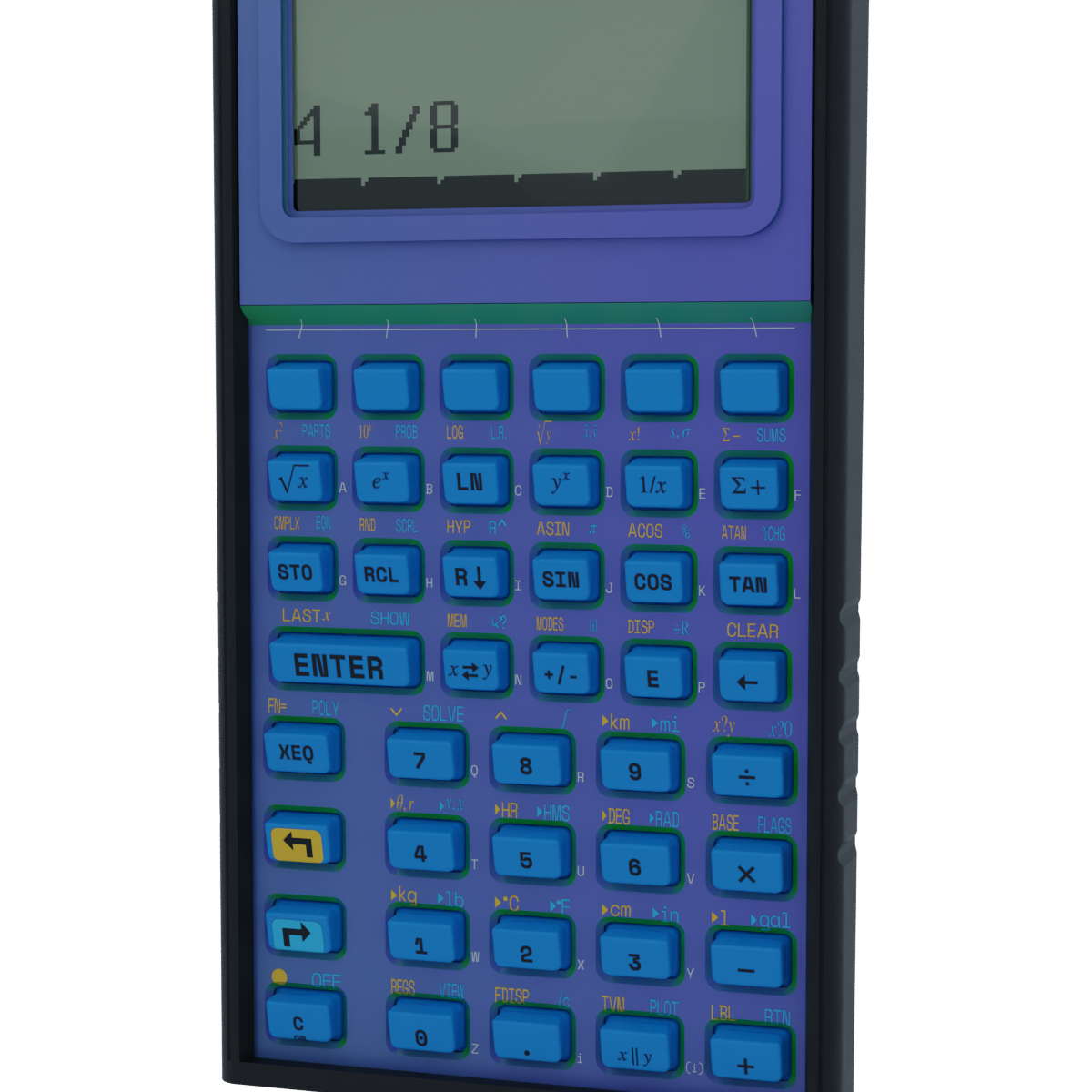

Deep Space
Trichromatic co-extruded Silk PLA faceplate shifting continuously between Indigo Purple, Emerald Green, and Deep Cobalt Blue, Solid Black PLA chassis, Azure TPU keys, and gold foil accents.
Synthwave
Dichromatic Silk PLA faceplate in Electric Magenta and Deep Obsidian Violet, Solid Black PLA chassis, Azure TPU keys, and laser-foamed stark white & neon cyan markings.

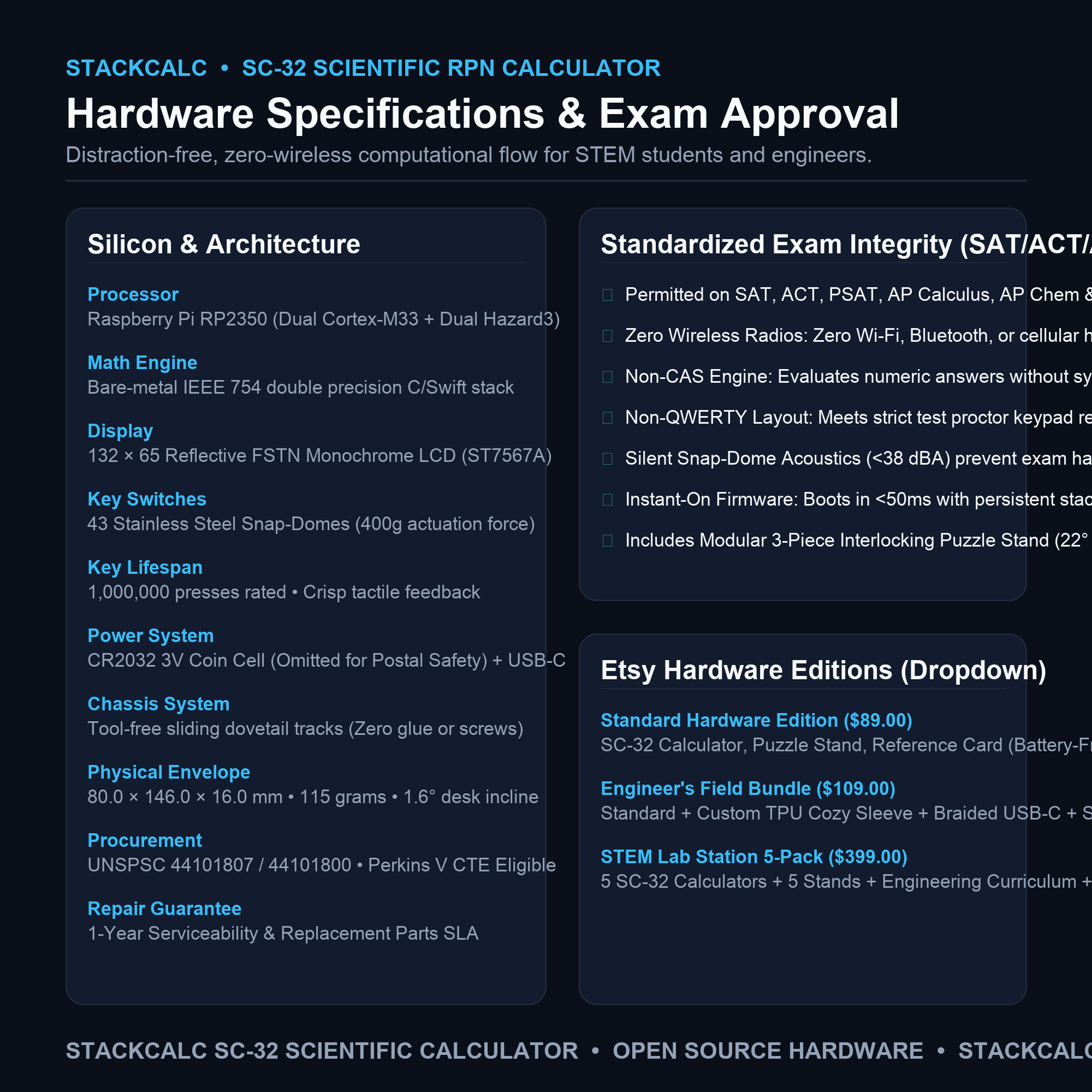

Technical Specifications
Engineered for durability, speed, and standard test compliance.
| Microcontroller | Raspberry Pi RP2350 (Dual ARM Cortex-M33 @ 150MHz + Dual Hazard3 RISC-V) |
| Operational Engine | Native bare-metal C / Swift RPN core with IEEE 754 double precision |
| Graphic Display | 132×65 Reflective FSTN Monochrome LCD (ST7567A controller, native Terminus typography) |
| Keypad Switches | 43 stainless steel tactile snap-domes (400g actuation force, 1,000,000 cycle lifespan) |
| Keycaps & Membrane | Custom debossed finger-centering dish caps molded with Shore 95A flexible polymer |
| Power Source | 1× CR2032 3V coin cell (3–6 months typical daily use) |
| Physical Dimensions | 80.0 mm (W) × 146.0 mm (L) × 16.0 mm (H) • 1.6° ergonomic incline |
| Net Weight | 115 grams (including coin cell and faceplate) |
| Testing Compliance | ✓ Permitted on SAT, ACT, PSAT, AP Calculus, and AP Physics (Zero wireless radios, Non-CAS) |
| Industrial Design & CMF | Sliding dovetail tool-free chassis • Zero fasteners or adhesives • Satin matte impact-resistant PETG • Custom Shore 95A keycaps • Ergonomic 1.6° planar wedge with anti-wobble desk pads |
| Procurement Classification | UNSPSC: 44101807 (Calculators), 44101800 (Electronic calculators) • NIGP: 204-16 • Perkins V CTE & NSF STEM Grant Eligible |
What's in the Box
Everything you need to begin immediate calculations.
SC-32 Handheld Instrument
Dual-core RP2350 silicon, 43 snap-dome tactile keys, and ST7567A reflective LCD. 100% pre-soldered and bench-tested.
Shore 95A TPU Travel Pouch
Flexible protective travel sleeve included by default with every unit to protect screen and keys in backpacks.

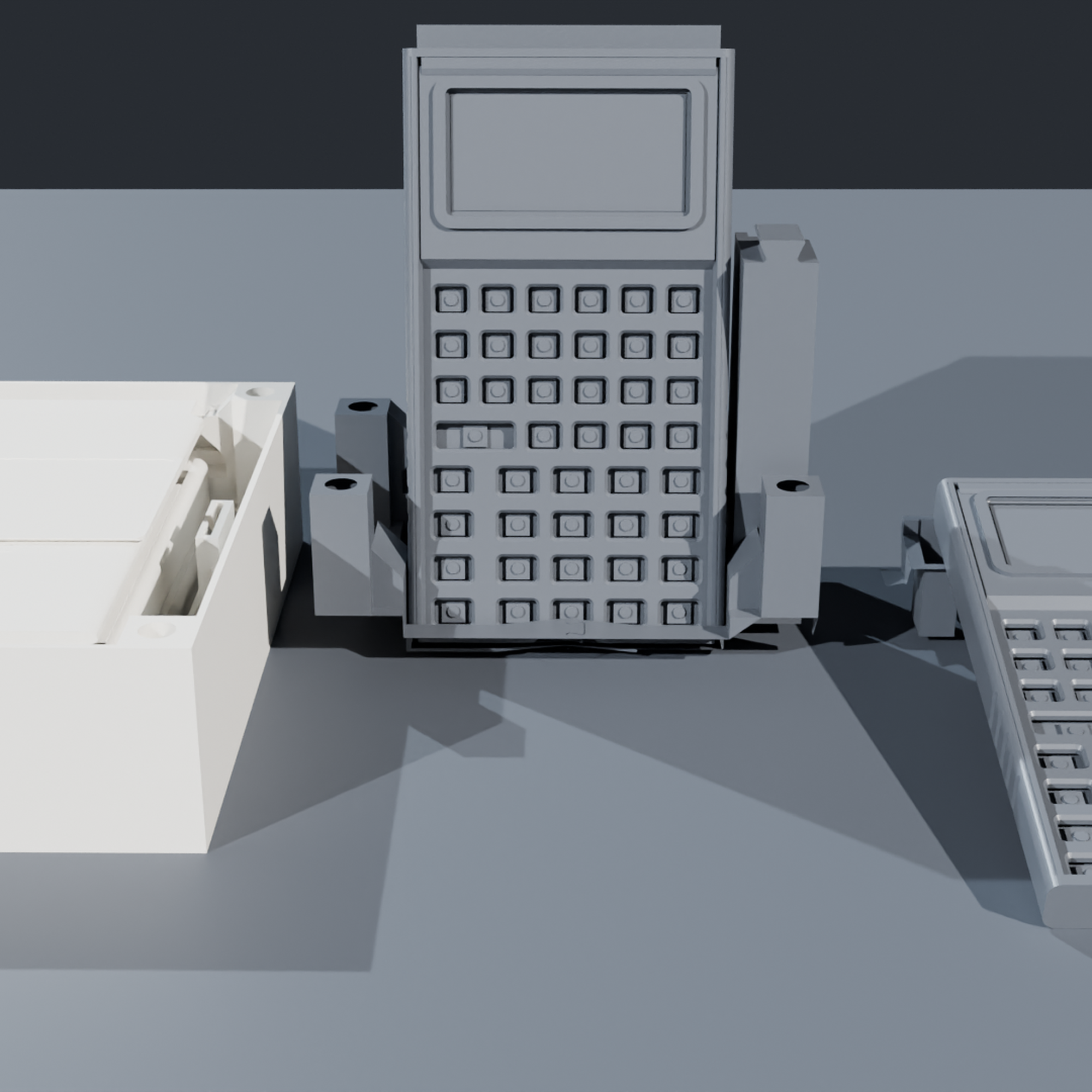

Interlocking Puzzle Desk Stand
Modular 3-piece interlocking desk stand supporting dual viewing angles (22° active typing tilt / 58° display mode).
Reference & Archival Cards
Heavyweight matte laminated quick-start cheatsheet and exploded CAD schematic card with Git-tracked Part IDs.
Safety, Compliance & Guarantees
Certified for testing integrity, electrical safety, and classroom durability.
WARNING: INGESTION HAZARD. This product contains a button cell or coin cell battery (CR2032). Death or serious injury can occur if ingested. Keep new and used batteries out of reach of children. Seek immediate medical attention if suspected swallowed or placed inside any part of the body.
Approved for official college entrance exams. Non-CAS calculation engine with zero wireless antennas, Bluetooth radios, or network capabilities. Retains full exam integrity in all proctored testing halls.
Engineered for sustainability, not planned obsolescence. Snaps apart cleanly via sliding dovetail rails without single-use glue. Individual keypads, LCD modules, and enclosures are available for easy field repair.
Fabricated with lead-free ENIG circuit boards and certified RoHS-compliant electronic components. Enclosure manufactured from odorless, non-toxic, recyclable matte polymers.
Bench Verification & Validation
Laboratory test parameters, switch endurance, and testing board regulatory compliance.
400g Tactile Snap-Domes
Actuation threshold verified at 400g ± 15g across 100,000 continuous test cycles. Provides sharp physical mechanical confirmation without mushy rubber squish.
Zero Wireless Radios
Zero Bluetooth, zero Wi-Fi, zero RF transmission hardware. Meets College Board SAT, AP Calculus, AP Physics, and ACT testing center calculator security standards.
Interlocking Dovetail Rails
4-part sliding dovetail enclosure allows tool-free battery replacement and faceplate customisation in 10 seconds with zero single-use plastic clips or glued seams.
Frequently Asked Questions
Examination compliance, hardware architecture, and firmware details.
Can I bring the SC-32 into College Board (SAT/AP) or ACT exam rooms? +
Yes. Testing authorities prohibit calculators with wireless communication (Wi-Fi/Bluetooth), cameras, sound recorders, audio jacks, or computer-style QWERTY keyboards. The SC-32 possesses none of these features, making it fully compliant for standardized testing environments.
Why does the SC-32 use Reverse Polish Notation (RPN)? +
RPN is a postfix mathematical notation favored by scientists and engineers because operators evaluate operands immediately without ambiguous order-of-operation rules or nested parentheses. Keystroke count drops by approximately 20–30%, and intermediate stack values remain constantly visible on the 4-line display.
How long does the battery last? +
The transflective ST7567A monochrome LCD requires no active backlight in daylight, consuming mere microamps. Combined with deep-sleep power states on the RP2350 microcontroller, a single standard CR2032 3V coin cell powers 6 to 12 months of daily laboratory and contest operation. (Note: Due to postal consumer safety regulations, units ship with the coin cell omitted; CR2032 batteries are widely available at local stores).
Is the design open hardware? +
Yes! We provide 100% free open-source STL 3D models, KiCad PCB layout files, and open C firmware on GitHub under an open-source license. You can fabricate, modify, and repair your own calculator freely.
SC-32 Scientific Calculator Reference Manual
The definitive operational handbook: 4-level XYZT stack mechanics, numerical solvers (SOLVE, ∫, POLY, TVM), vector plotting engine, and Texas UIL contest guidelines. Available as a 100% lay-flat spiral-bound bench handbook ($16) and school district classroom pack.
Self-Manufacture & Inspect Source Code
Download print-tested STLs for the chassis, faceplate, and keys, plus the complete RP2350 C firmware and KiCad PCB schematics.
The SC-32 connects directly with our physical math manipulatives (Fraction Studio, Algebra Boxes, and Sectional Clock), providing students with a seamless path from hands-on tactile models to high-speed scientific calculation.
